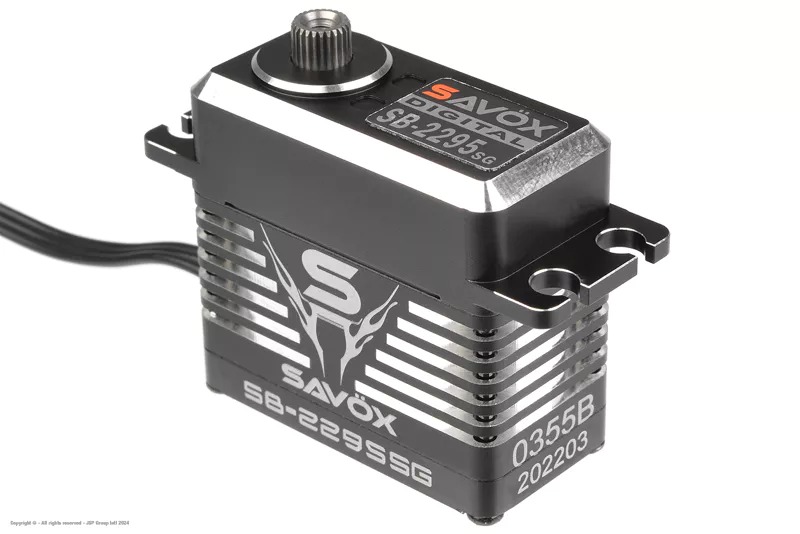

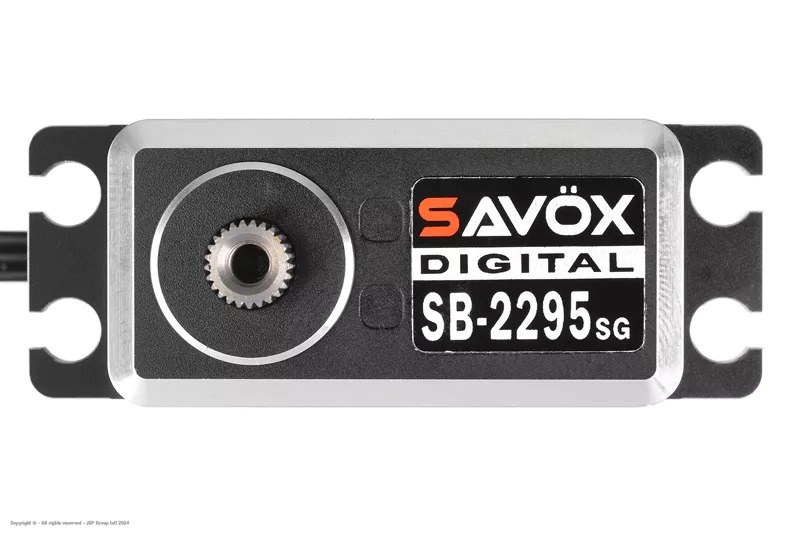

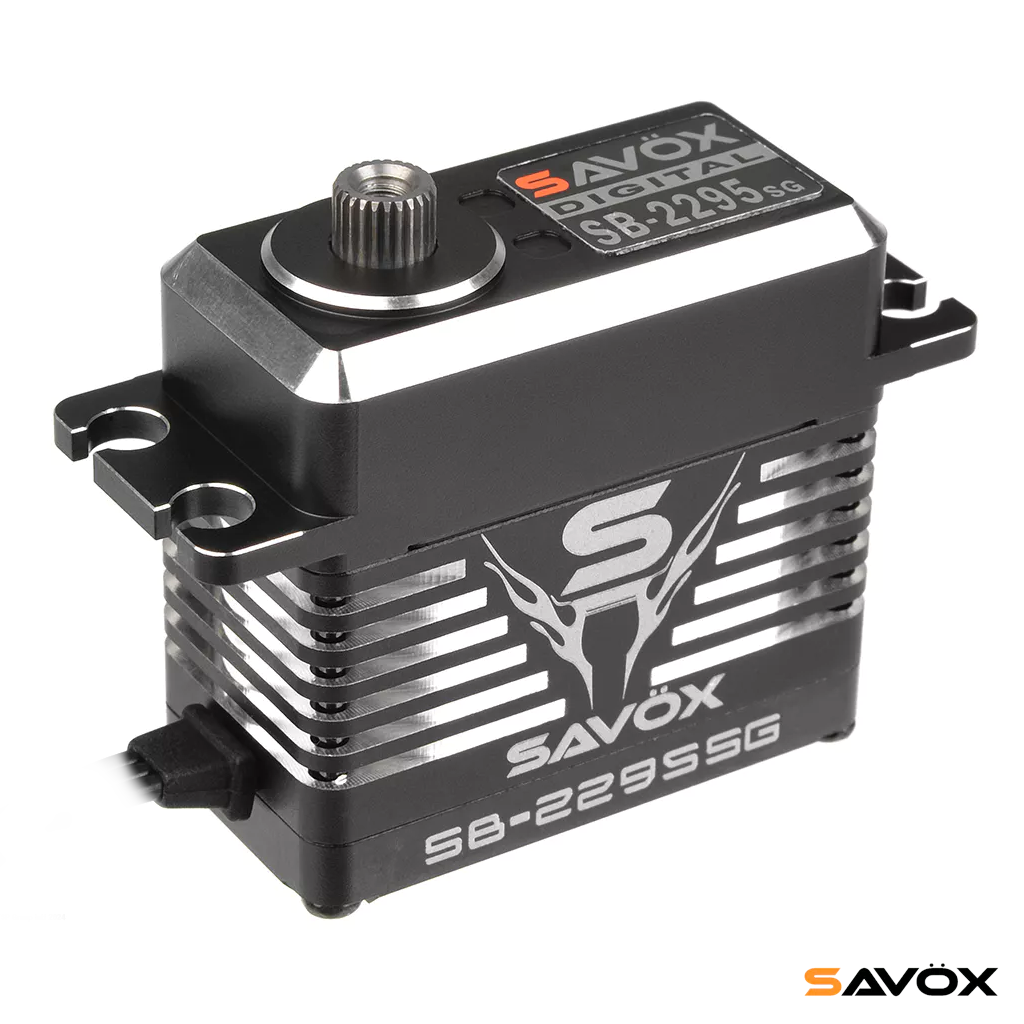

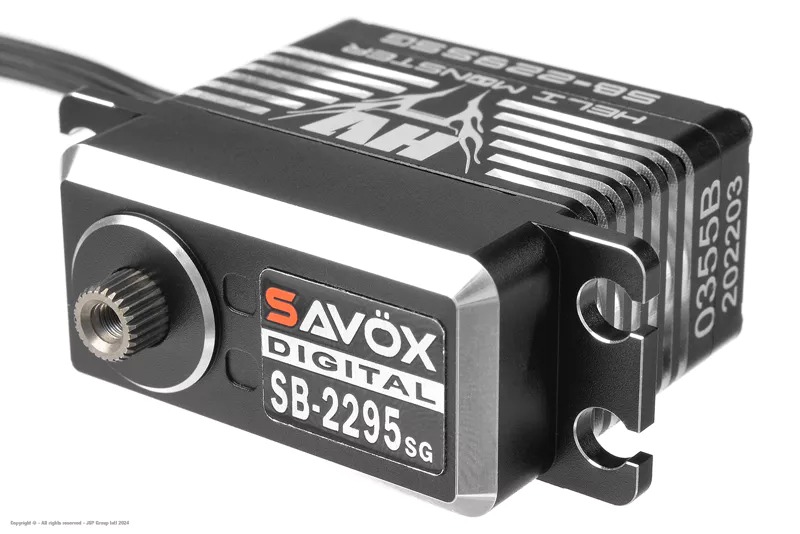

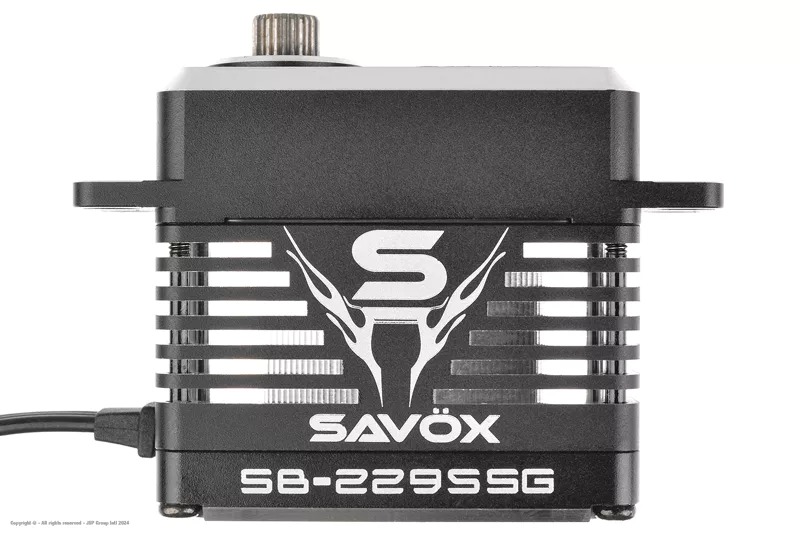

Savöx SB-2295SG (40kg/0,05s/8.4V) HV Brushless SG Servo

Its full aluminum case improves cooling and structural strength, while three precision ball bearings reduce friction and ensure smooth operation. Hardened steel gears provide outstanding durability for racing, crawler, and high-traction applications.

Positioned between the SB-2291SG and SB-2290SG in the Monster Series lineup, the SB-2295SG offers an excellent balance of speed and torque for a wide range of RC vehicles.

Key Features

• Monster Series brushless servo
• High-voltage operation up to 8.4V
• Full aluminum case
• Hardened steel gears
• Triple precision ball bearings
• Extremely fast response
• High torque output
• High efficiency and low power consumption
• Suitable for racing and off-road vehicles
• 25T output spline

Specifications

• Servo Type: Digital HV Servo
• Motor Type: Brushless
• Gear Material: Steel
• Case Material: Full Aluminum
• Bearings: 3 Ball Bearings
• Operating Voltage: 7.4–8.4V
• Speed @ 7.4V: 0.060 sec / 60°
• Speed @ 8.4V: 0.050 sec / 60°
• Torque @ 7.4V: 32.0 kg-cm
• Torque @ 8.4V: 40.0 kg-cm
• Dimensions: 40.3 × 20.2 × 38.7 mm
• Weight: 79 g
• Output Spline: 25T

Recommended Applications

• 1/8 Electric Buggies
• 1/8 Nitro Buggies
• 1/8 Truggies
• 1/8 GT Racing Cars
• 1/10 4WD Buggies
• 1/10 Crawlers
• 1/8 Crawlers
• Rock Crawlers
• High-performance racing vehicles
