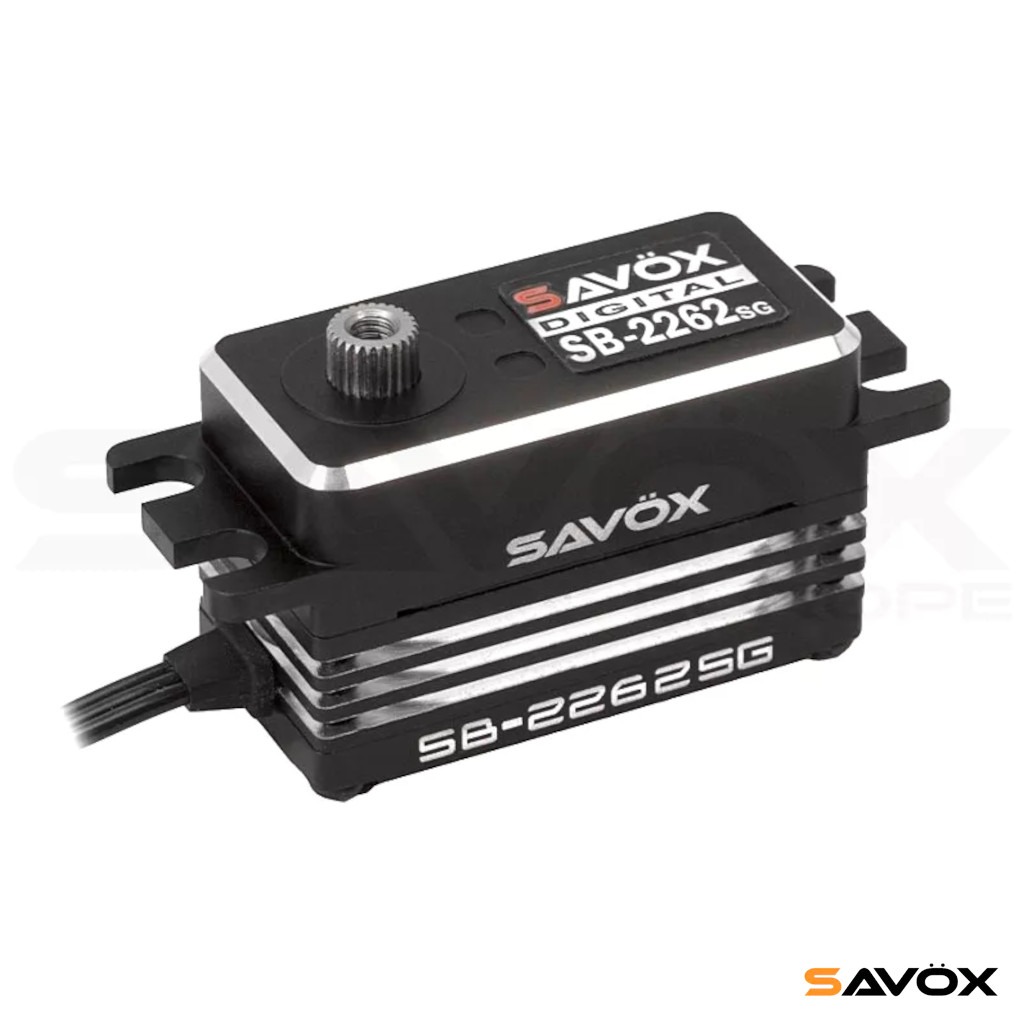

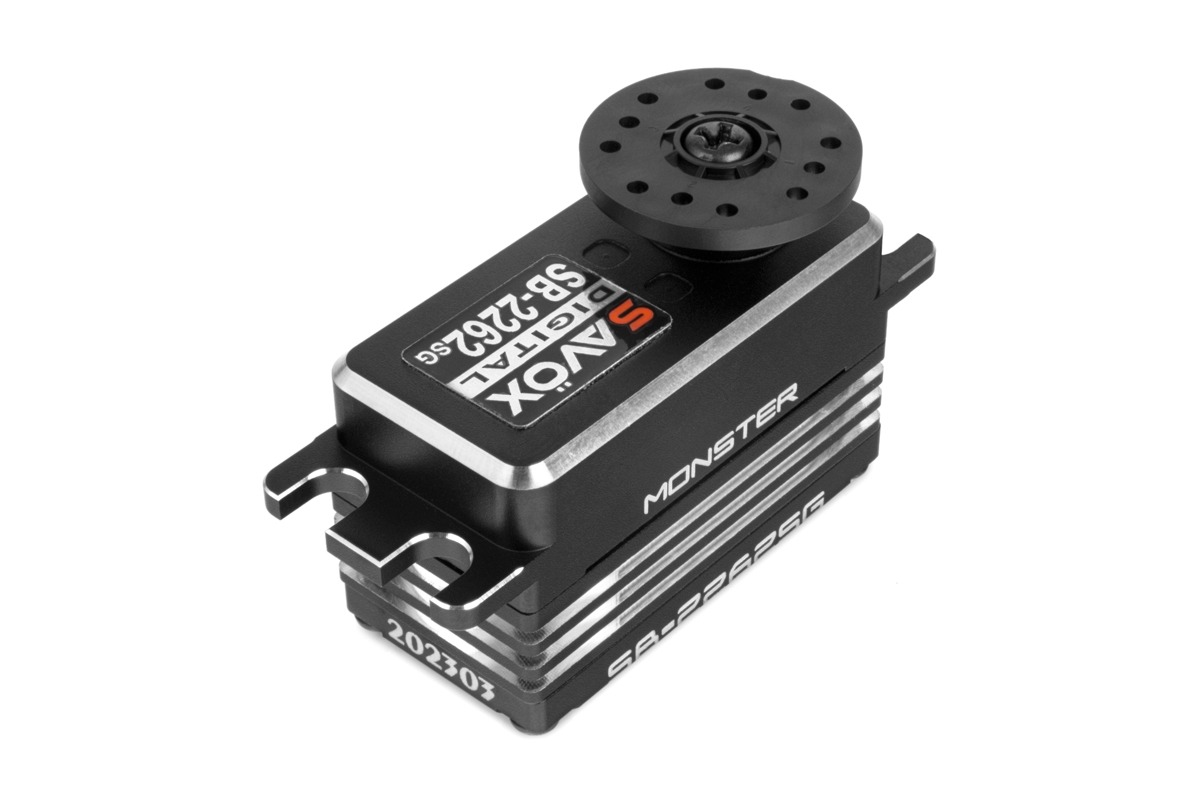

Savöx - Servo - SB-2262SG - Digital - High Voltage - Brushless Motor - Steel Gears

Product code: SB-2262SG

The powerful "Monster" performance series servos from Savox utilize an all aluminum case, and unique brushless motor and controller technology to boost power up to 35% over previous generation servos.

Features:

• Full Aluminum Case
• 2 Precision Ball Bearings
• Metal Gears
• Torque @ 6.0v - 18kg
• Speed @ 6.0v - 0.10 sec / 60deg

Specifications:

• Torque @ 7.4v - 25kg
• Speed @ 7.4v - 0.08 sec / 60deg
• Torque @ 8.4v - 32kg
• Speed @ 8.4v - 0.065 sec / 60deg
• Dimensions L x W x H (mm): 40.8 x 20.2 x 25.75
• Weight: 62g

General Info:

• Item Nr: SB-2262SG
• Barcode: 4710006993812
• Brand: Savöx

Servo - Specs:

• Speed 60°/Sec @ 6.0V: 0,1
• Speed 60°/Sec @ 7.4V: 0,08
• Speed 60°/Sec @ 8.4V: 0,07
• Torque kg/cm @ 6.0V: 18
• Torque kg/cm @ 7.4V: 25
• Torque kg/cm @ 8.4V: 32
• Quiescent Current (mA): 5
• Rated Current (mA): 220
• Blocking Current (mA): 6300

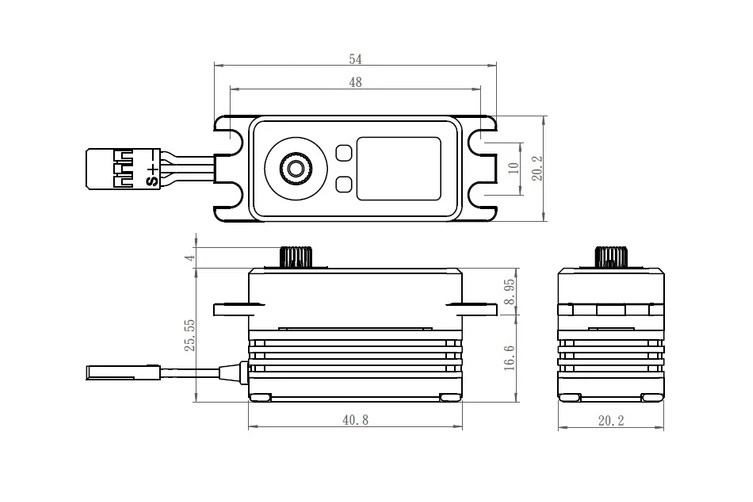

Servo - Dimensions:

• Servo Type: Low Profile Servo
• Spline Type: 25T Spline
• Length (mm): 40,8
• Width (mm): 20,2
• Height (mm): 25,75
• Weight (g): 62

Servo - Technology:

• Technology: Digital HV
• Operating Voltage (V): 6.0V - 8.4V
• Servo Motor: Brushless Motor
• Servo Protection: Water - Dust Resistant
• Servo Positioning: VR Potentiometer - Direct Drive
• Servo Gears: Steel Gears
• Servo Case: Aluminium Case
• Connector: JR Universal + Black Lead

Servo - SB-2262SG - Digital - High Voltage - Brushless Motor - Steel Gears

Safety Documents:

• SB-2262SG_CE_DeclarationForm_EN_12072017
