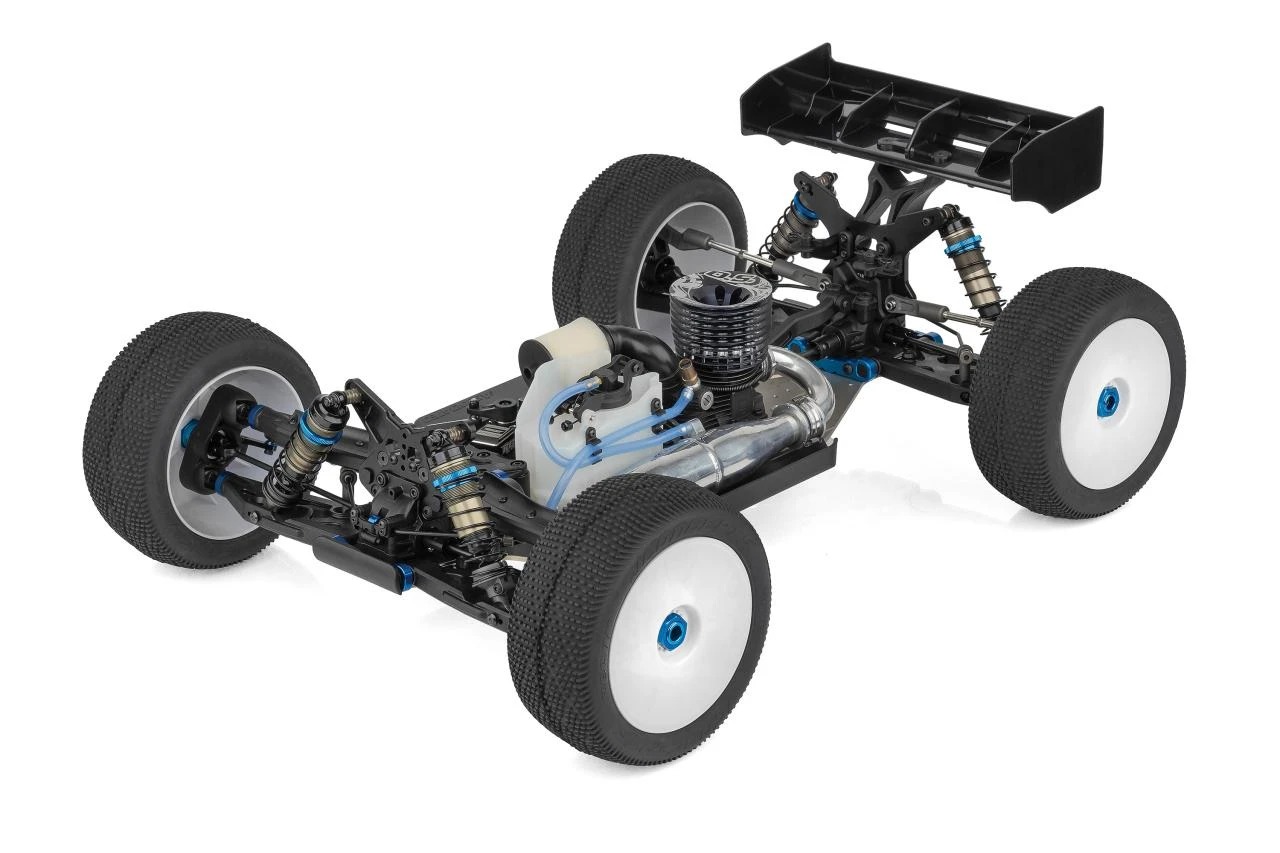

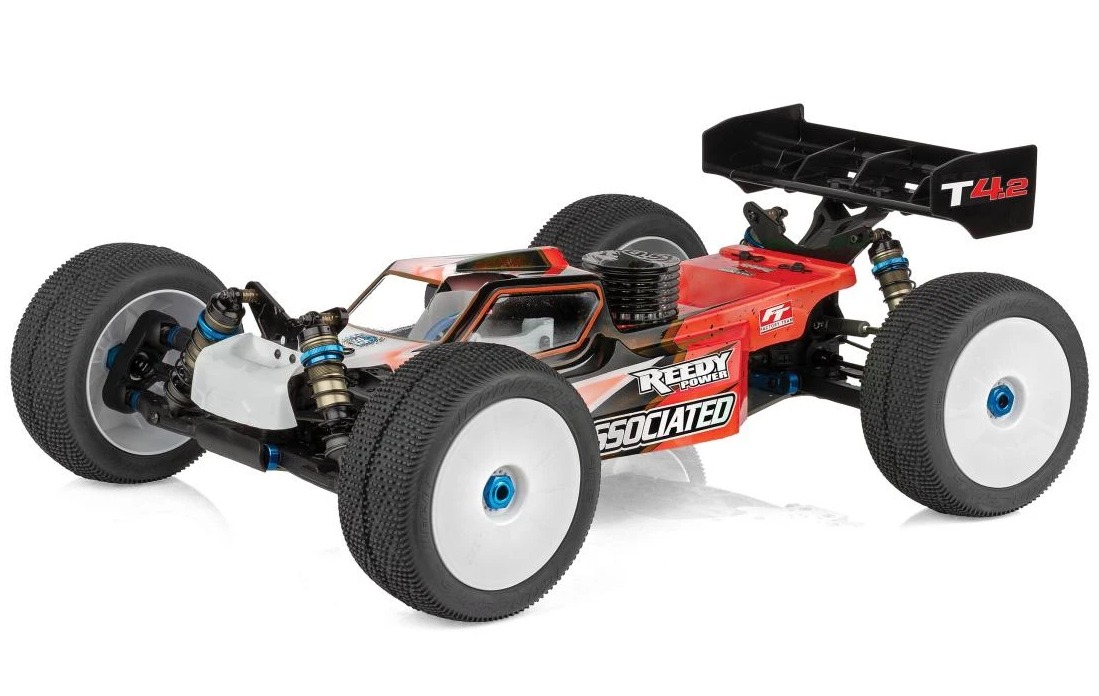

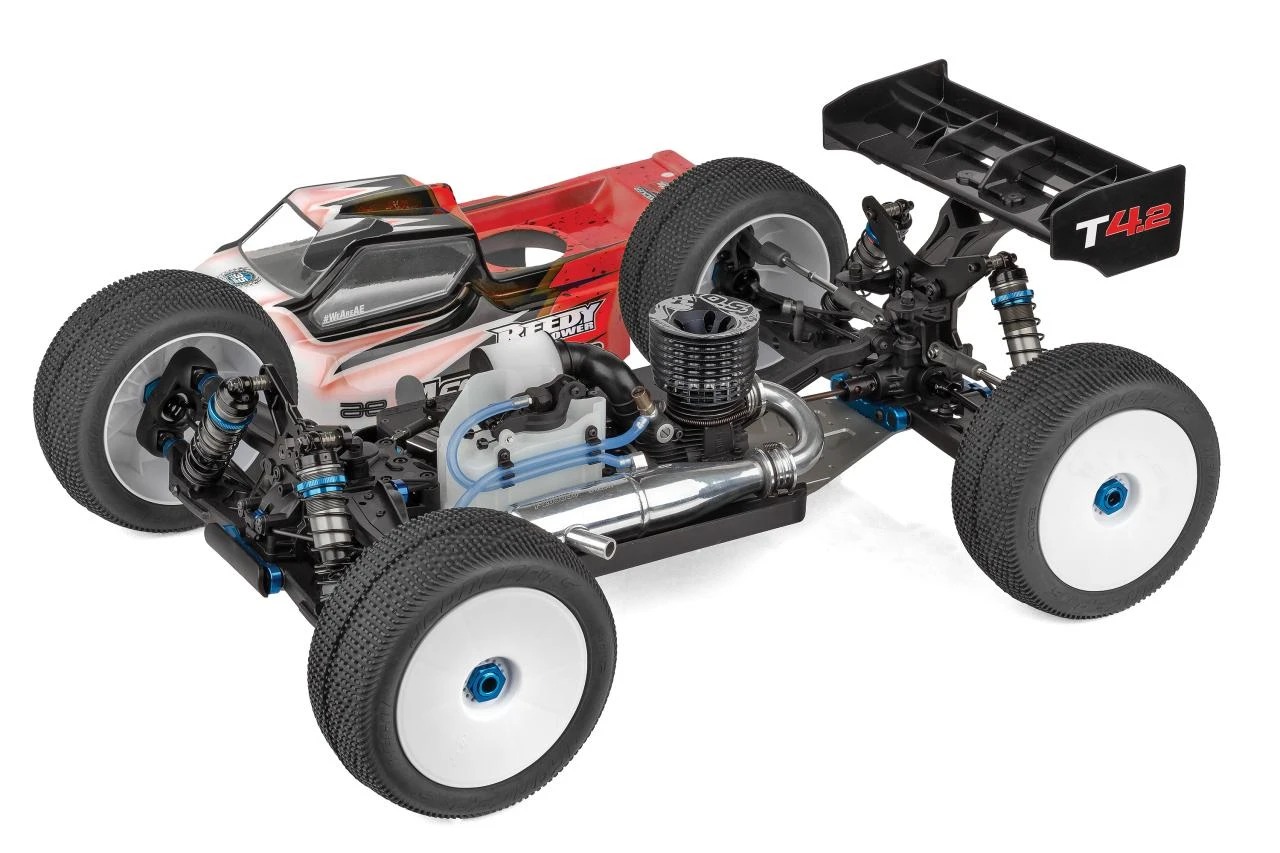

Team Associated RC8T4.2 Team Kit – 1:8 4WD Nitro Truggy #80957

The RC8T4.2 is a Team Kit competition model that requires assembly. The nitro engine, electronics, body, wheels and tyres are selected separately, allowing racers to build the car specifically for their preferred equipment, track conditions and racing class.

With extensive adjustment of suspension geometry, differentials, chassis flex and steering characteristics, the RC8T4.2 is designed for racers looking for a professional-level 1:8 nitro truggy platform.

Key RC8T4.2 Updates

• New height-adjustable front and rear gearboxes
• New shock towers designed for the adjustable gearbox geometry
• Additional body mounting height options
• New front and rear suspension arms
• New 16° KPI steering blocks
• Revised bump steer geometry
• New wider-mounted rear anti-roll bar
• 4 mm shorter chassis on the nitro RC8T4.2
• Additional chassis flex tuning options
• New composite top plate
• High-volume centre differential

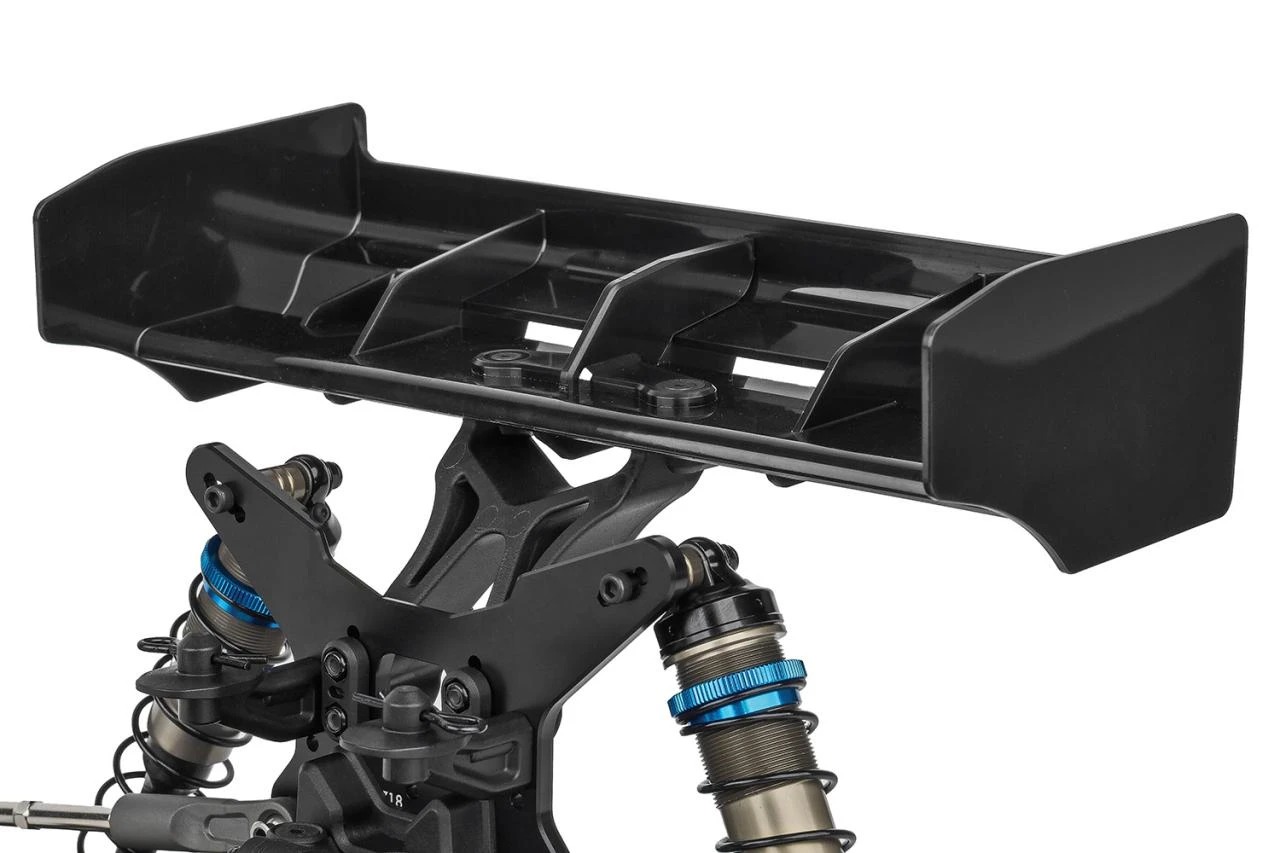

• High-downforce rear wing
• Factory Team hard-anodized aluminium shock bushings
• Updated brake pad material and brake spring
• Heavy-duty 40/9 ring and pinion gears
• 131 mm universal drive shafts
• 17 mm differential outdrives
• 19 mm and 20 mm HTC internal differential gears included
• Shocks can be configured in bladder or emulsion setup
• Factory Team wheel hexes and grooved hinge pins

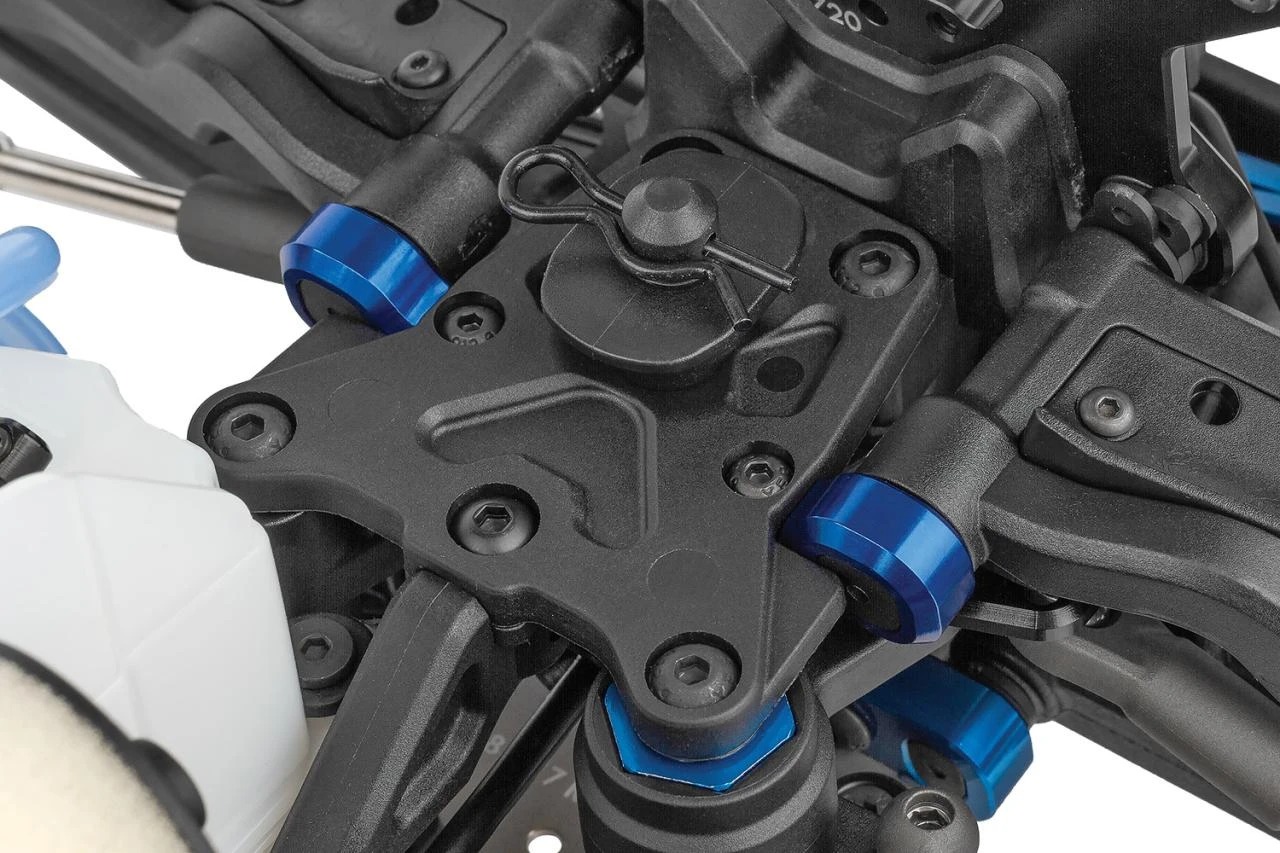

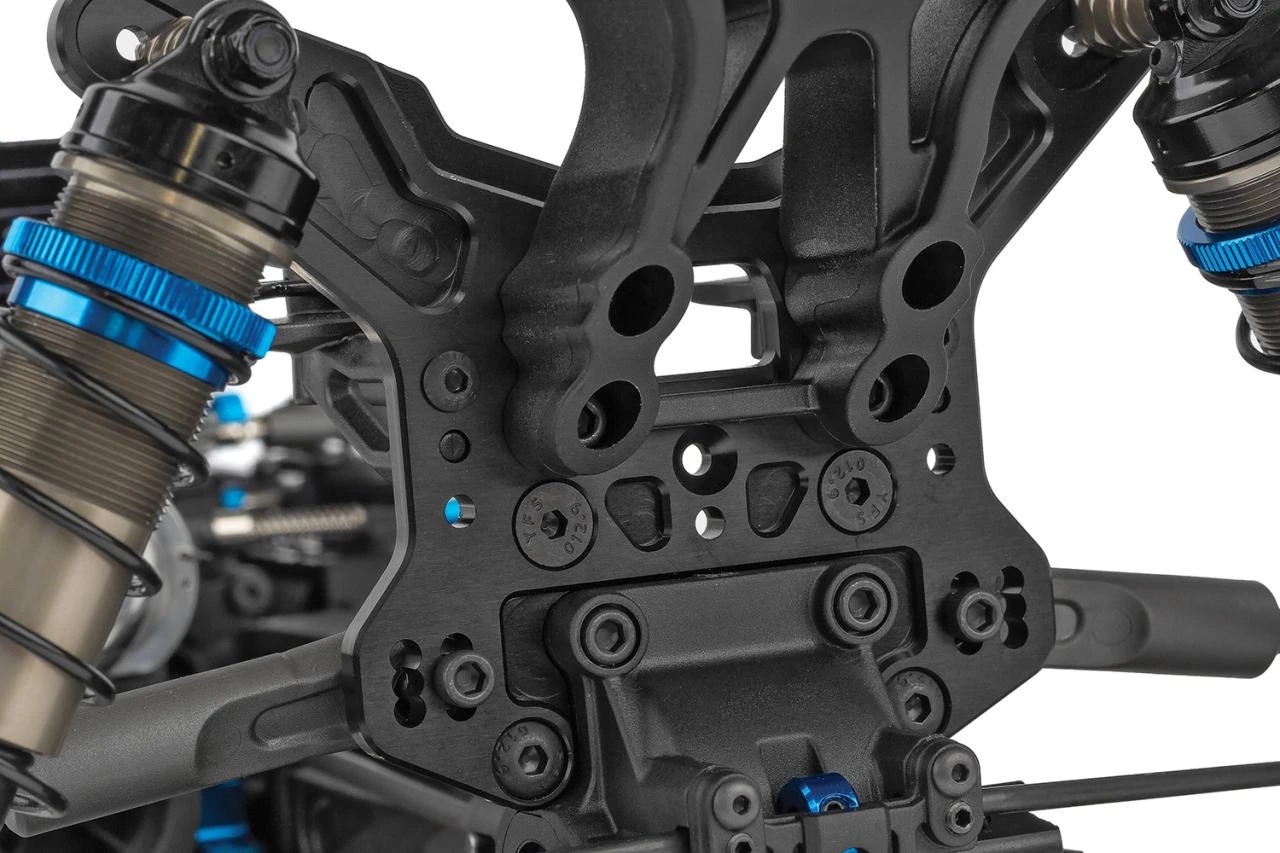

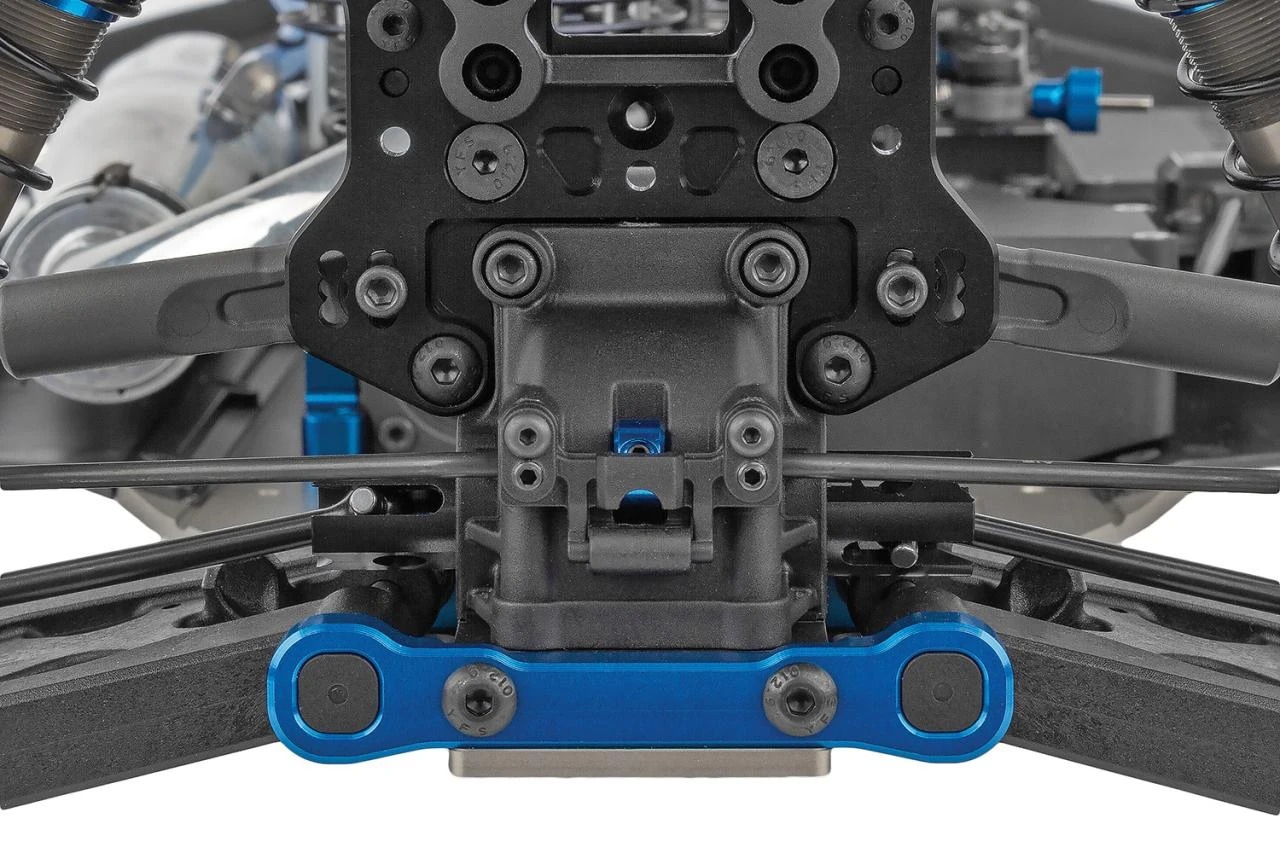

Height-Adjustable Gearboxes

One of the most important new tuning features on the RC8T4.2 is the ability to adjust the height of the front and rear gearboxes.

Changing the gearbox position affects driveshaft angle, suspension geometry and the way the chassis reacts under different track conditions.

Together with the new shock towers, this gives racers another valuable setup option for fine-tuning traction, handling and overall chassis balance.

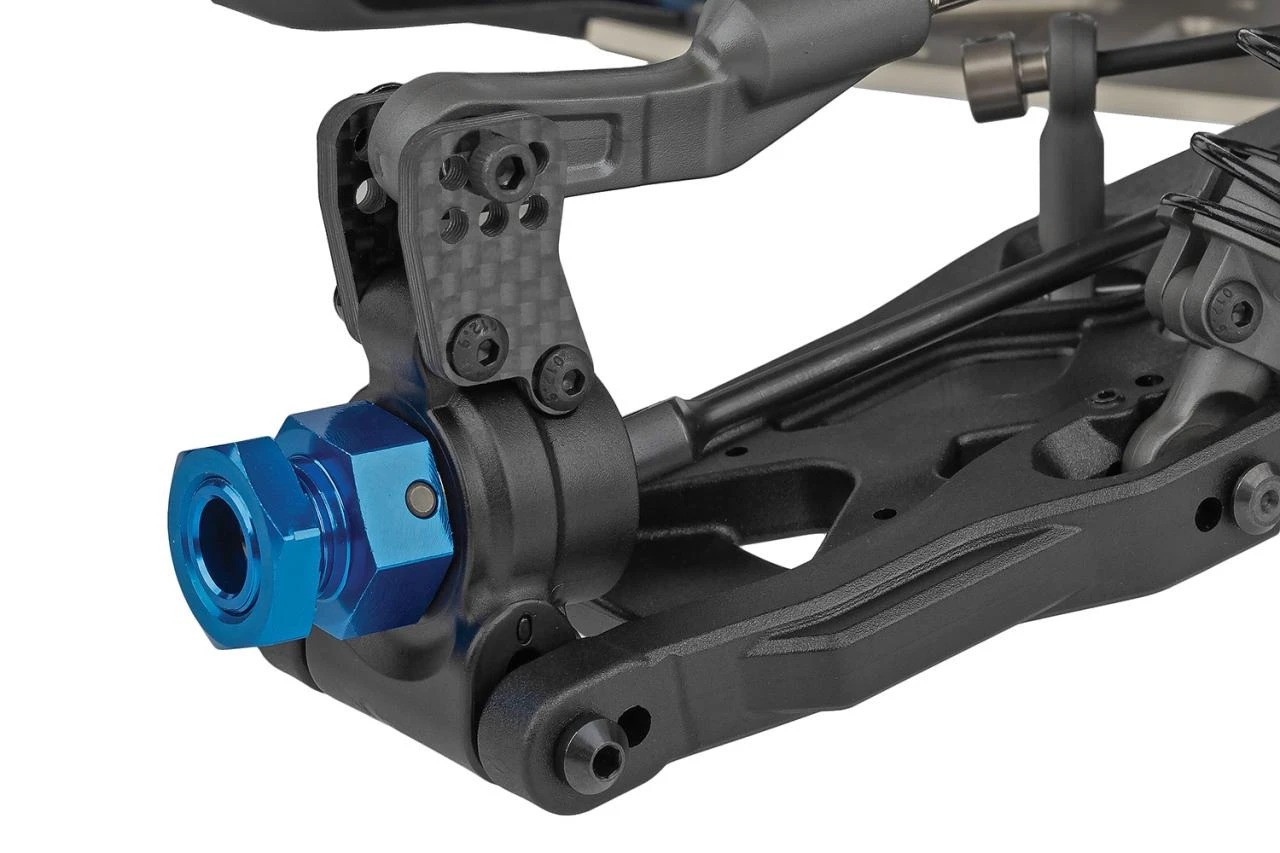

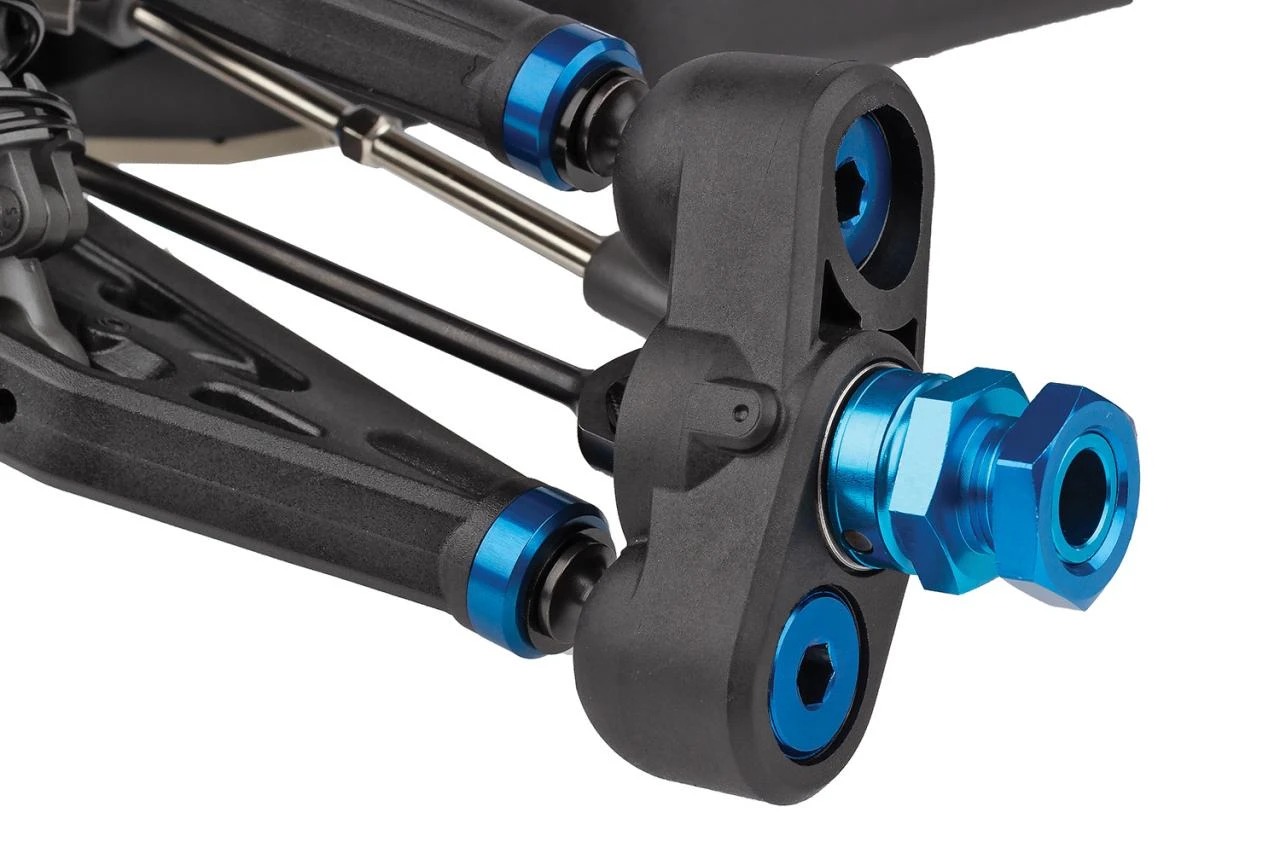

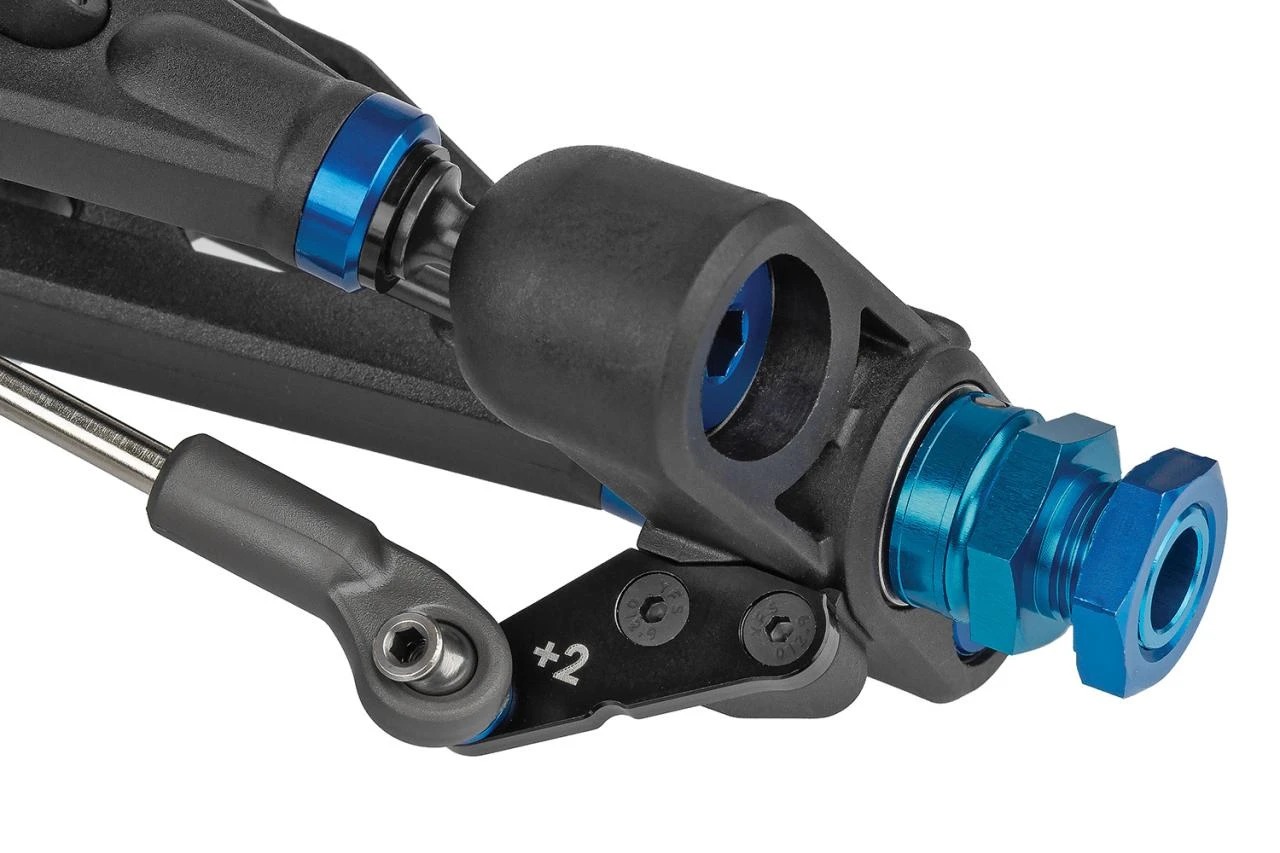

New 16° KPI Steering Geometry

The RC8T4.2 features new 16° KPI steering blocks together with revised bump steer geometry.

KPI, or King Pin Inclination, influences how the front wheel moves during steering and therefore affects the way the car behaves on corner entry, through the middle of the corner and on exit.

The revised geometry gives racers more precise control over front-end response and steering characteristics.

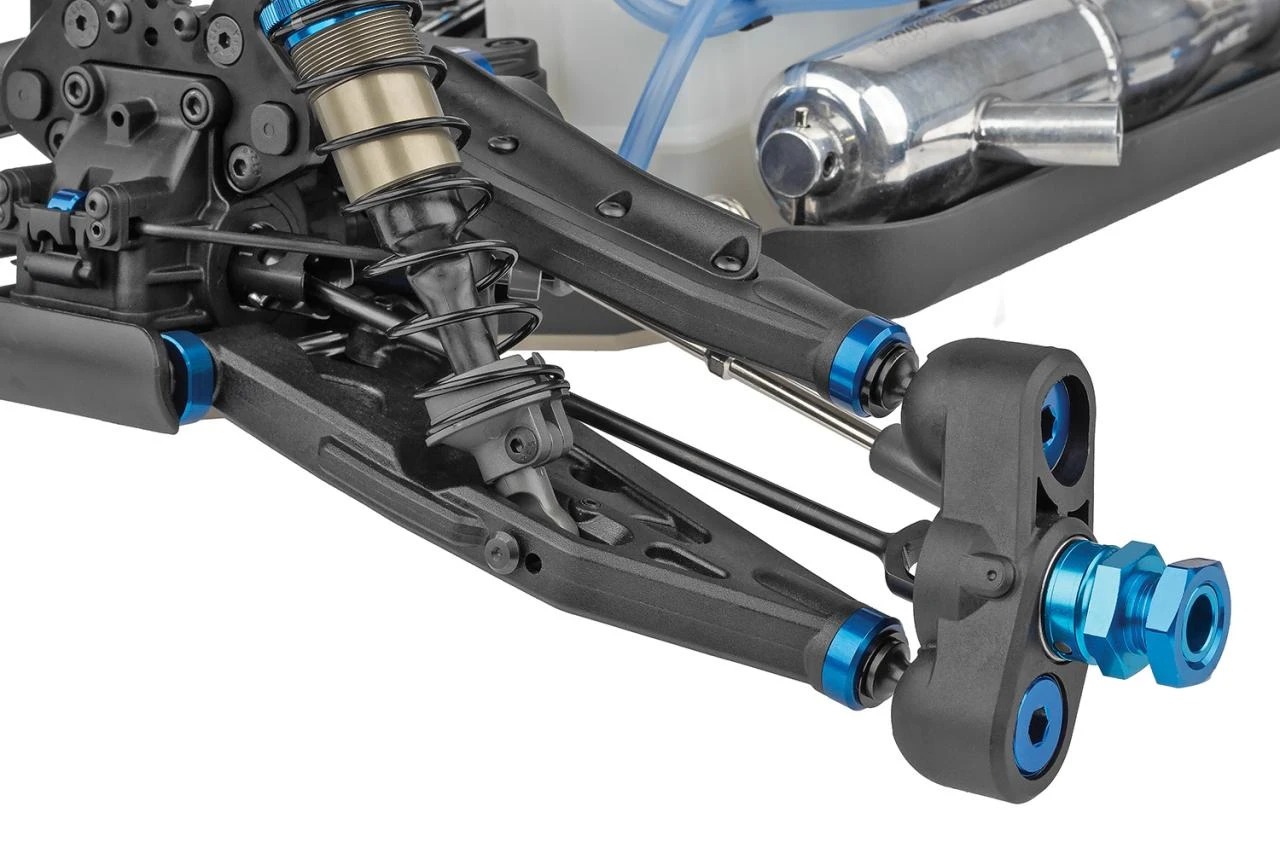

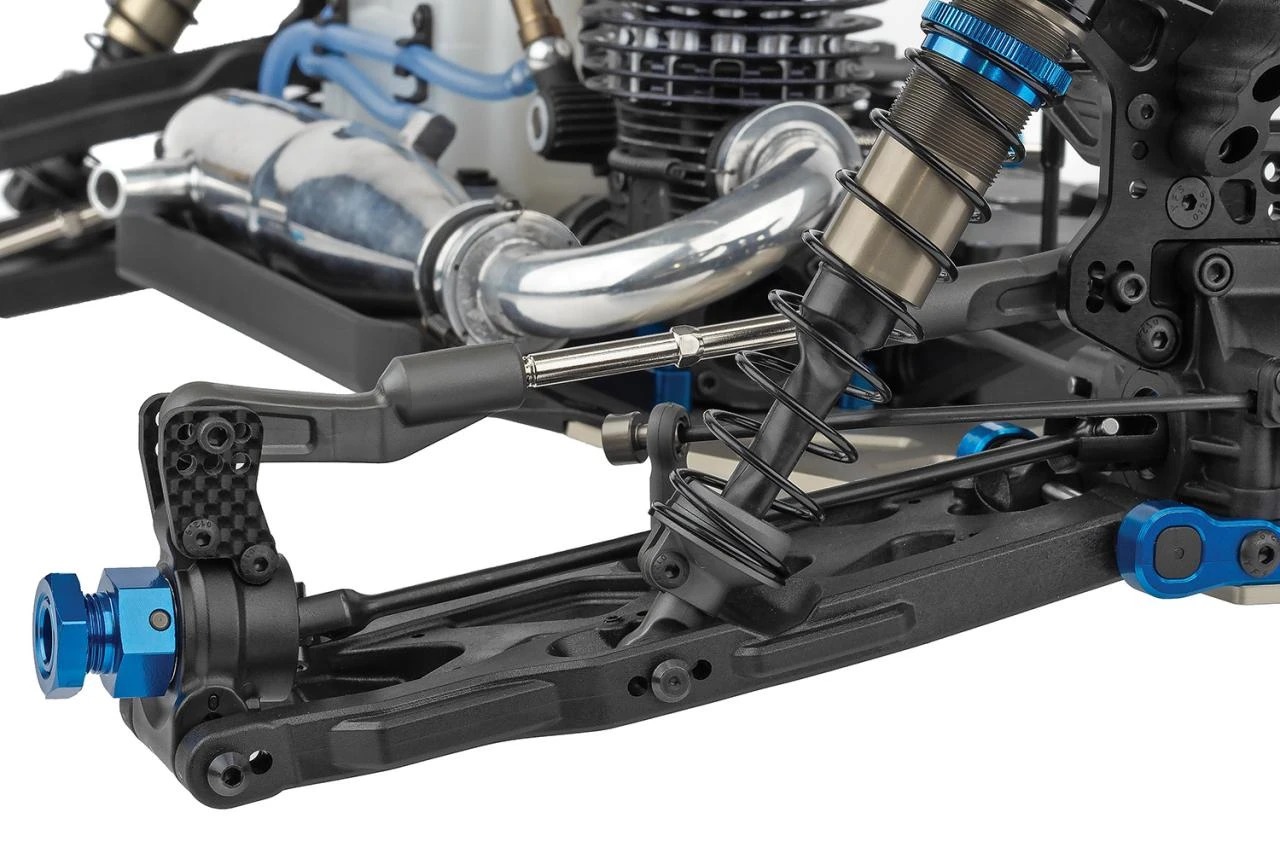

New and Stronger Suspension Arms

The RC8T4.2 uses newly designed composite front and rear suspension arms.

The updated design focuses on:

• Improved durability
• Revised geometry
• Better compatibility with the updated suspension system
• Increased reliability under demanding 1:8 truggy racing conditions

1:8 truggy racing places extremely high loads on suspension components, particularly on rough tracks and large jumps, making durability a major part of the design.

4 mm Shorter Nitro Chassis

The nitro RC8T4.2 features a 4 mm shorter chassis compared with its predecessor.

The shorter chassis changes weight distribution and vehicle rotation while working together with the revised chassis brace system.

Chassis flex is an important setup tool in 1:8 racing. Different flex characteristics can provide more traction on low-grip or rough tracks, while a stiffer setup can improve precision on smoother, higher-grip surfaces.

Revised Rear Anti-Roll Bar

The RC8T4.2 rear anti-roll bar uses wider mounting points.

The anti-roll bar controls chassis roll and influences rear suspension behaviour during cornering. The revised geometry is designed to provide more consistent and predictable anti-roll bar operation.

Heavy-Duty 40/9 Drivetrain

The RC8T4.2 uses Team Associated’s heavy-duty 40/9 ring and pinion gears.

The larger, stronger gear teeth provide increased tooth engagement and are designed to withstand the high loads generated by modern 1:8 truggy racing.

The drivetrain also features 131 mm universal drive shafts and 17 mm differential outdrives, creating a durable transmission system capable of handling powerful competition nitro engines.

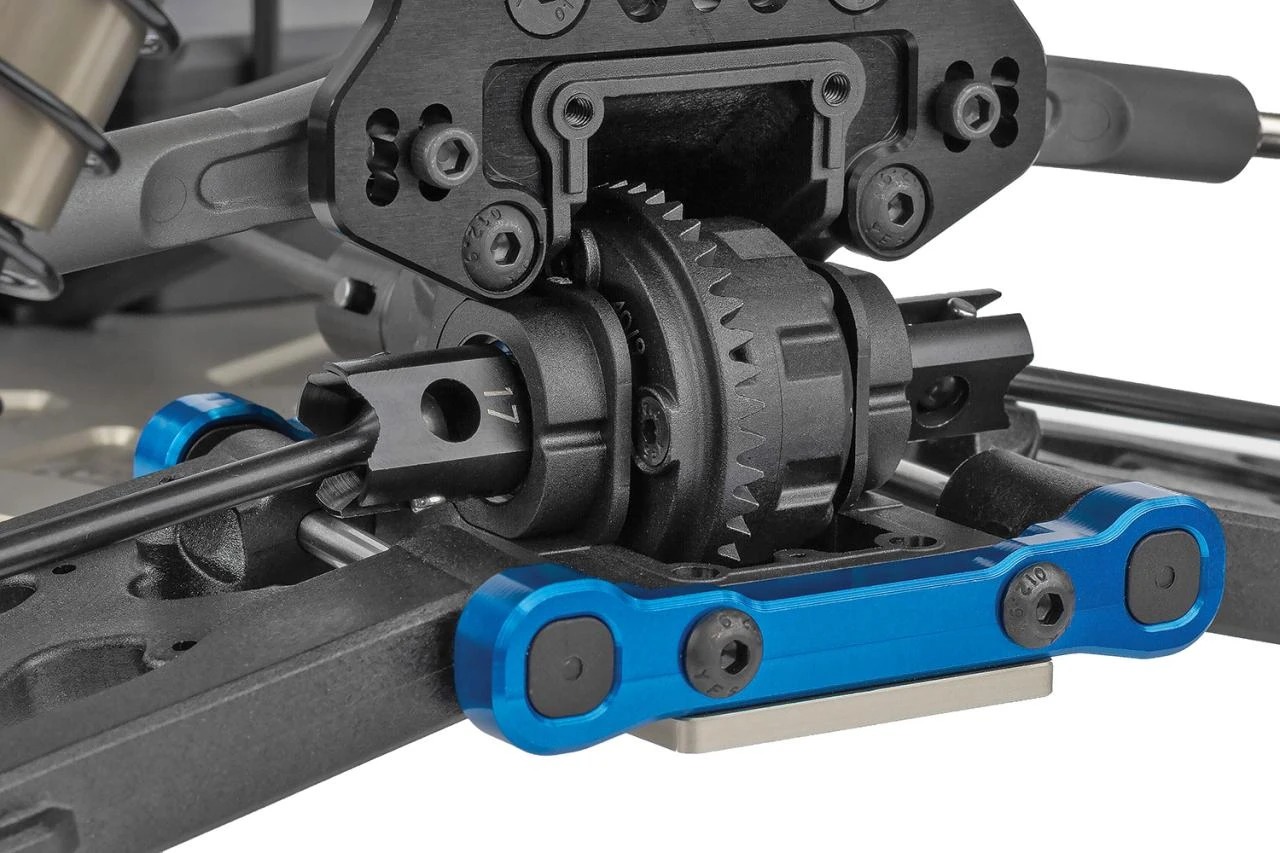

High-Volume Centre Differential

The RC8T4.2 features a high-volume centre differential, providing increased oil capacity to help maintain more consistent differential performance during long races and finals.

Differential oils and internal gear configurations are important setup tools in 1:8 racing, allowing racers to fine-tune power distribution between the front and rear of the car.

Both 19 mm and 20 mm HTC internal differential gear sets are included, providing additional tuning options.

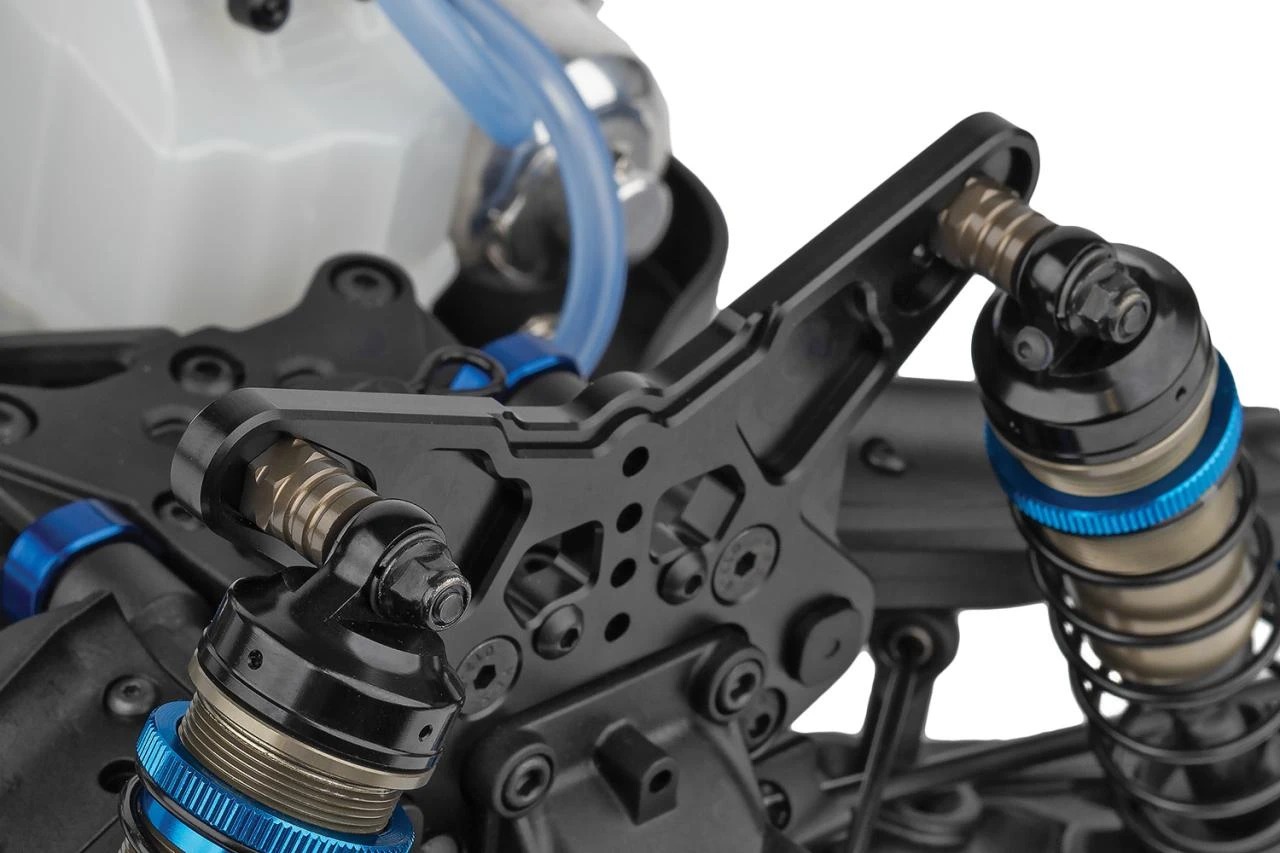

Adjustable Competition Shocks

The RC8T4.2 shocks can be configured using either:

• Bladder setup
• Emulsion setup

The kit includes the necessary components for both configurations together with Factory Team hard-anodized aluminium shock bushings.

This allows racers to tune shock response and suspension feel for different track surfaces, jump profiles and driving styles.

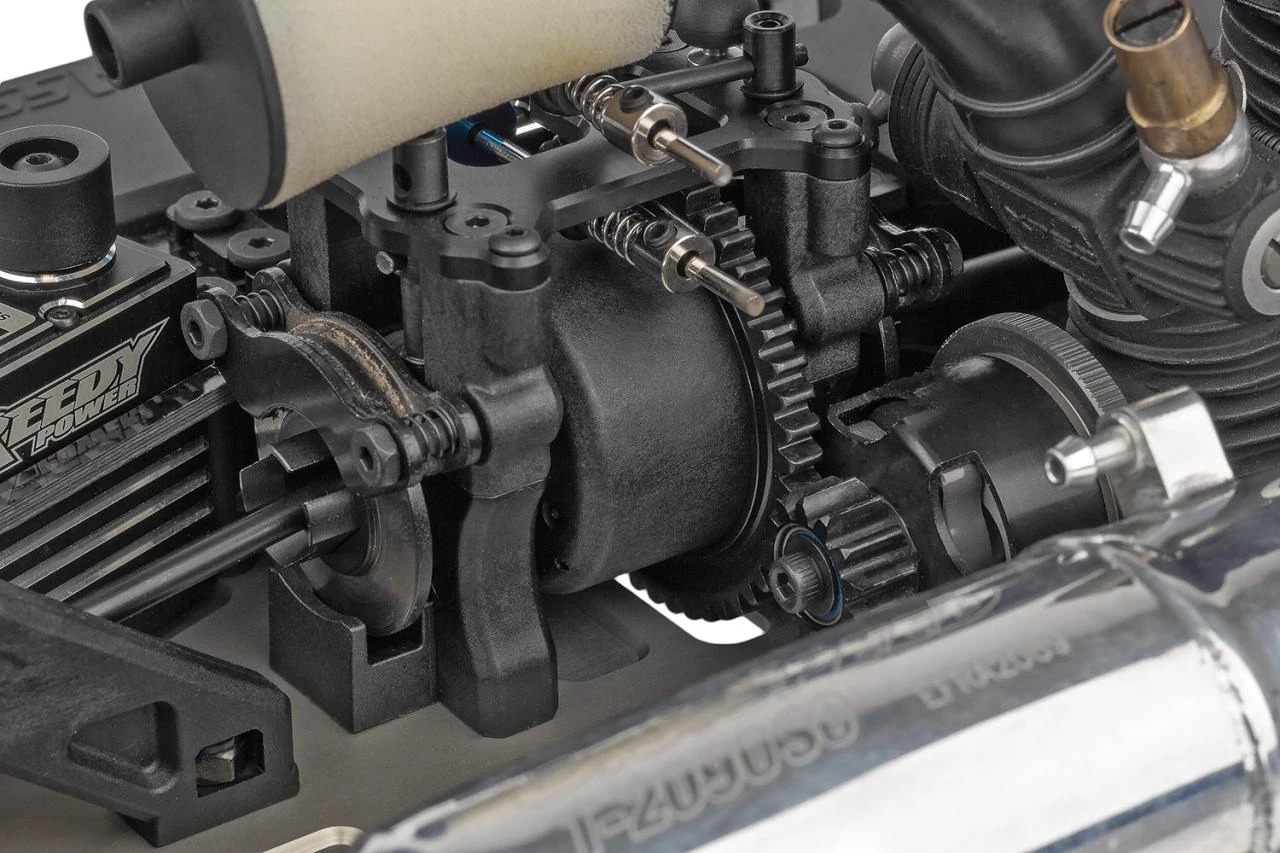

Updated Nitro Truggy Braking System

The RC8T4.2 nitro version features revised:

• Brake pad material
• Brake spring

Consistent braking performance is especially important in 1:8 nitro truggy racing, where long finals and high vehicle weight place significant demands on the braking system.

Technical Specifications

• Manufacturer: Team Associated
• Model: RC8T4.2 Team Kit
• Item number: 80957
• UPC: 784695809574
• Scale: 1:8
• Vehicle type: Nitro Truggy
• Drivetrain: 4WD
• Power system: Nitro
• Kit type: Team Kit
• Application: Off-Road Competition
• Length: 560 mm
• Width: Depends on wheel and setup choice
• Wheelbase: Adjustable
• Weight: Depends on selected equipment
• Internal gear ratio: 4.44:1
• Differentials: Front / Centre / Rear
• Ring and pinion: 40/9
• Front steering geometry: 16° KPI
• Drive shafts: 131 mm universals
• Differential outdrives: 17 mm
• Centre differential: High-volume
• Shock configuration: Bladder or emulsion
• Rear wing: High-downforce

What’s Included?

• Team Associated RC8T4.2 Team Kit chassis
• 4WD drivetrain
• Height-adjustable front and rear gearboxes
• Front, centre and rear differentials
• Competition suspension system
• Adjustable shock absorbers
• High-downforce rear wing
• Factory Team aluminium shock bushings
• 19 mm and 20 mm HTC differential gears
• Hardware and components required to assemble the kit according to the manual

This is a competition kit and requires assembly.

What Else Do You Need?

The RC8T4.2 Team Kit is not an RTR model.

To complete the car you will need:

• 1:8 nitro engine
• Suitable exhaust pipe and manifold
• Throttle / brake servo
• Steering servo
• Receiver
• Radio transmitter
• Receiver battery
• Nitro fuel
• Glow starter
• Starter box
• 1:8 truggy body
• Truggy wheels
• Track-specific truggy tyres
• Body paint
• Suitable tools and maintenance equipment

Engine, servo and tyre selection will depend heavily on the track, racing class and personal preferences.

Who Is the Team Associated RC8T4.2 For?

1:8 nitro truggy racers: the RC8T4.2 is designed specifically for competition and offers an extensive range of setup adjustments.

Experienced RC enthusiasts: the Team Kit requires assembly and allows the engine, electronics and other components to be selected separately.

Drivers who want precise setup control: gearbox height, differentials, shocks, anti-roll bars, chassis flex and steering geometry provide extensive tuning possibilities.

Existing RC8T4 racers: the RC8T4.2 introduces significant geometry and durability updates while retaining the proven concept of the RC8T4 platform.

Frequently Asked Questions

Is the Team Associated RC8T4.2 an RTR model?

No. The RC8T4.2 #80957 is a Team Kit competition model that requires assembly.

The engine, electronics, body, wheels and tyres must be purchased separately.

Is the RC8T4.2 nitro or electric?

Item number 80957 RC8T4.2 is the nitro version.

The electric version is the RC8T4.2e #80958.

What are the main differences between the RC8T4 and RC8T4.2?

Major updates include height-adjustable gearboxes, new shock towers, revised 16° KPI steering geometry, new suspension arms, a revised rear anti-roll bar arrangement and a 4 mm shorter chassis on the nitro version.

Is a body included with the RC8T4.2?

No. A 1:8 truggy body is required separately, allowing racers to select and paint the body of their choice.

Are wheels and tyres included?

No. Wheels and tyres are not included and should be selected according to the track surface and racing conditions.

What engine does the RC8T4.2 require?

The RC8T4.2 is designed for a suitable competition 1:8 nitro engine. The engine, exhaust system and related equipment are purchased separately.

Who is the RC8T4.2 designed for?

The RC8T4.2 is primarily designed for experienced racers and serious RC enthusiasts who want to build their own competition setup and tune the car for specific track conditions.
